Works with the Staht Connect app over BluetoothStaht t60 Digital Pull Tester Kit - with Case + App & Accessories Kit
A compact anchor pull tester that reaches 60 kN with less than 25 Nm of torque, for on-site proof testing, with the Staht Connect app and Bluetooth. Supplied in a case, with its accessories. Designed for testing to BS 8539, BS 7883, NASC TG4:25, AEFAC TN05 and ASTM E3121.
£2,295.00ex VAT · £2,754.00 inc VAT
1
- In stock
- Delivery is worked out at checkout.
- Delivery and returns

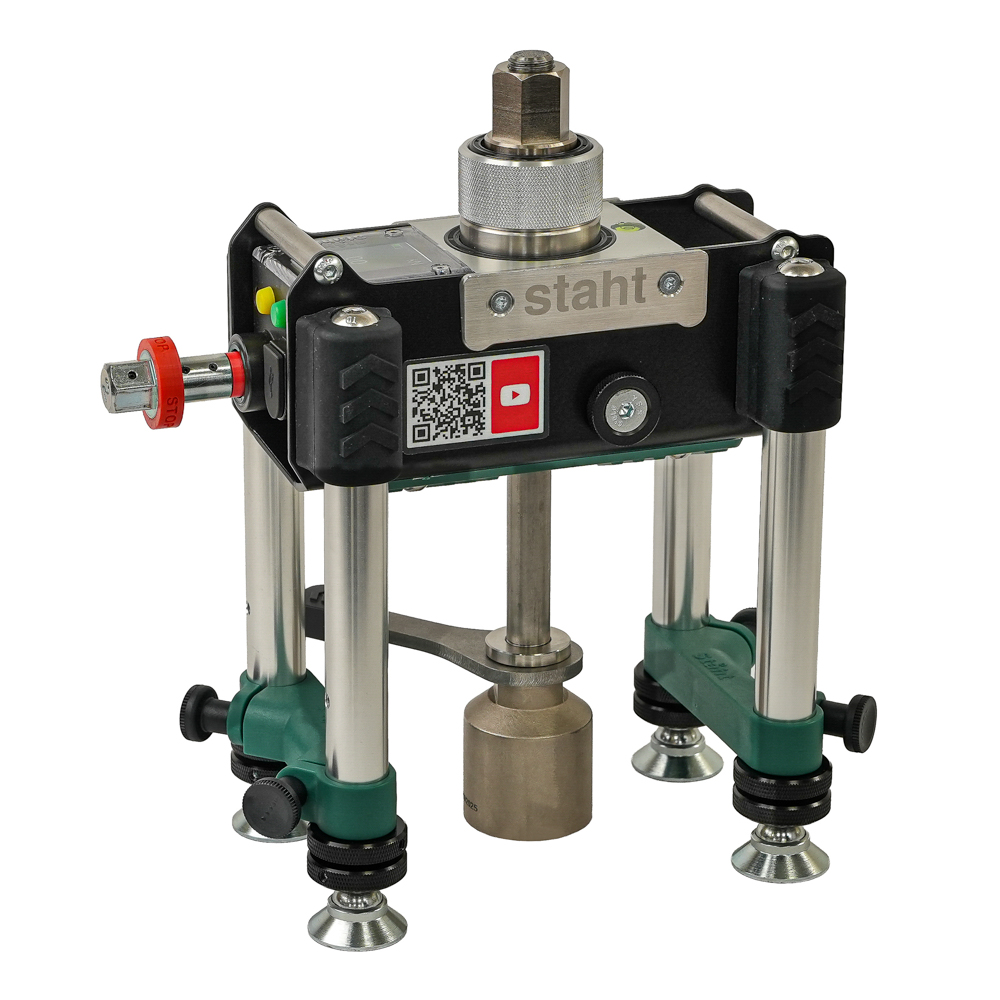

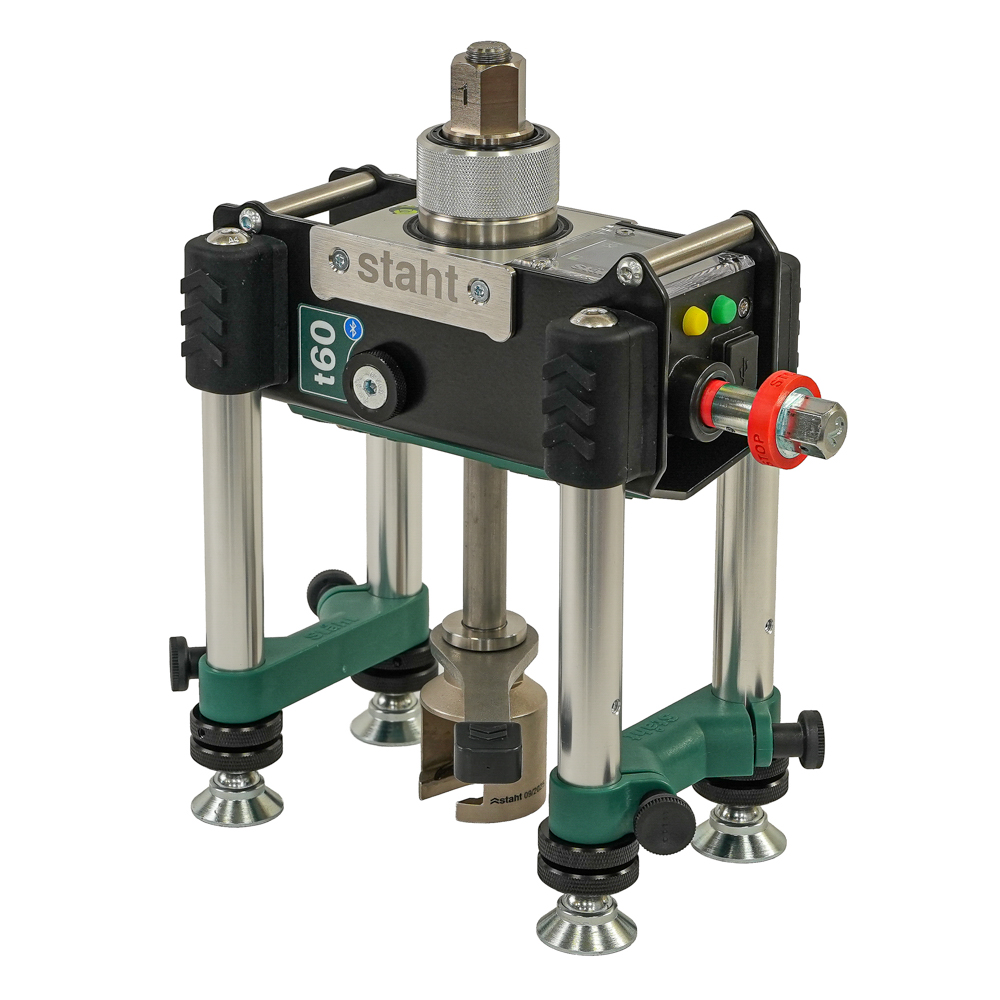

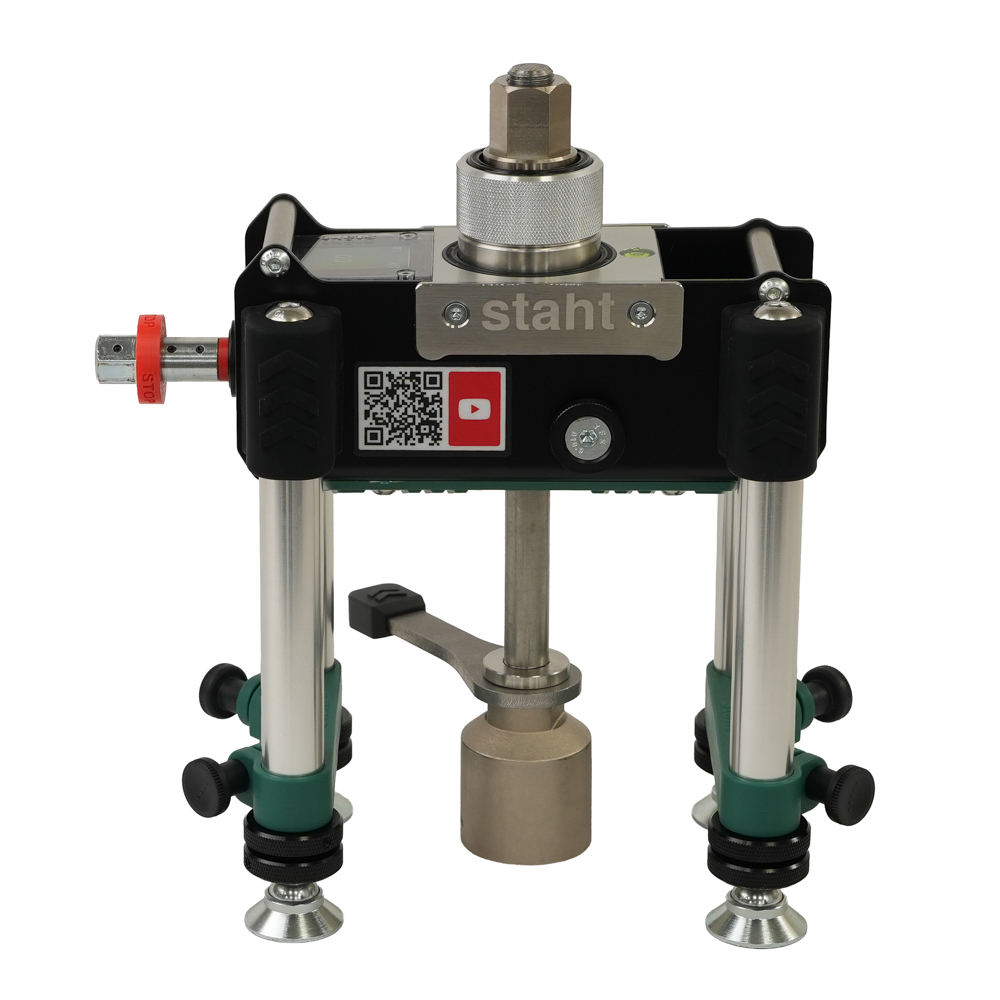

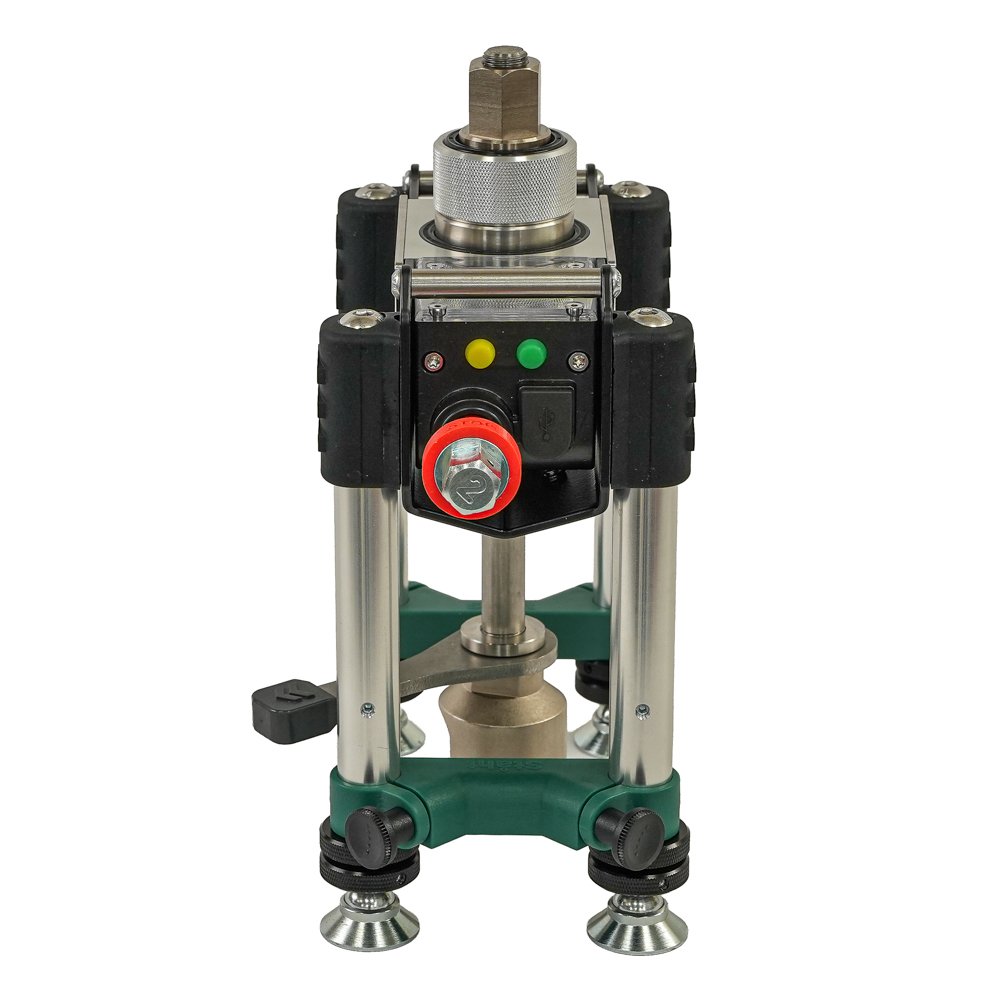

The Staht t60 Digital Pull Tester is a compact, powerful and innovative anchor pull tester, enabling the user to reach 60kN with ease. It is designed for typical on-site proof testing of anchors and eyebolts. The digital interface and Bluetooth ® Connectivity provide an excellent user experience and an efficient reporting workflow to improve productivity.
At a glance
- Load range: 0 to 60 kN
- Read-out: live and peak load shown together on a sunlight-readable colour screen, in metric and imperial units
- Accuracy: ±1.5% of full scale (±0.9 kN)
- Weight: 10.1 kg kit
- App and reports: connects over Bluetooth to the Staht Connect app; the app and its reports at app.staht.com are free, with no subscription, including team use
- In the kit: load cell and bridge, anchor jaw, threaded washers (M6 to M20), slotted washers (M6 to M16), clevis, 17 mm socket and 3/8 in socket wrench, 24 mm ratchet spanner, anti-rotation arm, tool and wrist lanyards, USB-C cable
- Calibration: 12-month calibration certificate included
Kit Product Features
- 60kN at less than 25Nm of torque.
- Staht® Connect App for Android and iOS included as standard.
- Bluetooth® wireless technology with a 10m range.
- Sunlight-readable full colour screen.
- Live and Peak Load displayed simultaneously on the test screen.
- Imperial & Metric recording.
- USB re-chargeable Li-ion battery.
- Four legs for strength and stability.
- 1m USB charging cable is provided; ideal for charging at home or on the move.
- 12 months calibration certificate provided.
- Annual calibrations can be performed digitally by a local calibration laboratory, reducing shipping costs and downtime.
- Closed-system hydraulic seal design, to keep the oil in and reduce the need for top-ups.
M16 sealed thrust nut.
- Captive feet and lock nuts provide fine height adjustment and prevent inadvertent loss or overloading of the legs at the maximum bridge height.
- Height adjustable leg braces provide additional strength and torsional stiffness.
- The bridge chassis surrounds the hydraulic load cell and gauge provides protection from accidental damage.
- Ergonomic moulding provides a positive grip in all testing orientations.
- Hydraulic load cell can be removed from the bridge assembly for other testing applications easily, with our quick release fixings.
- Clevis adaptor assembly incorporates a captive pin. This prevents inadvertent loss and enables faster engagement of the eyebolt.
- Anchor jaw features a captive design and magnets to prevent inadvertent loss of the slotted washers.
- Slotted washers and knurled threaded washers made from high strength steel enable anchors from M6 to M20 to be proof loaded.
- Tool tethers are provided for the safe attachment of the Proof Load Tester and the 3/8” reversible ratchet wrench.

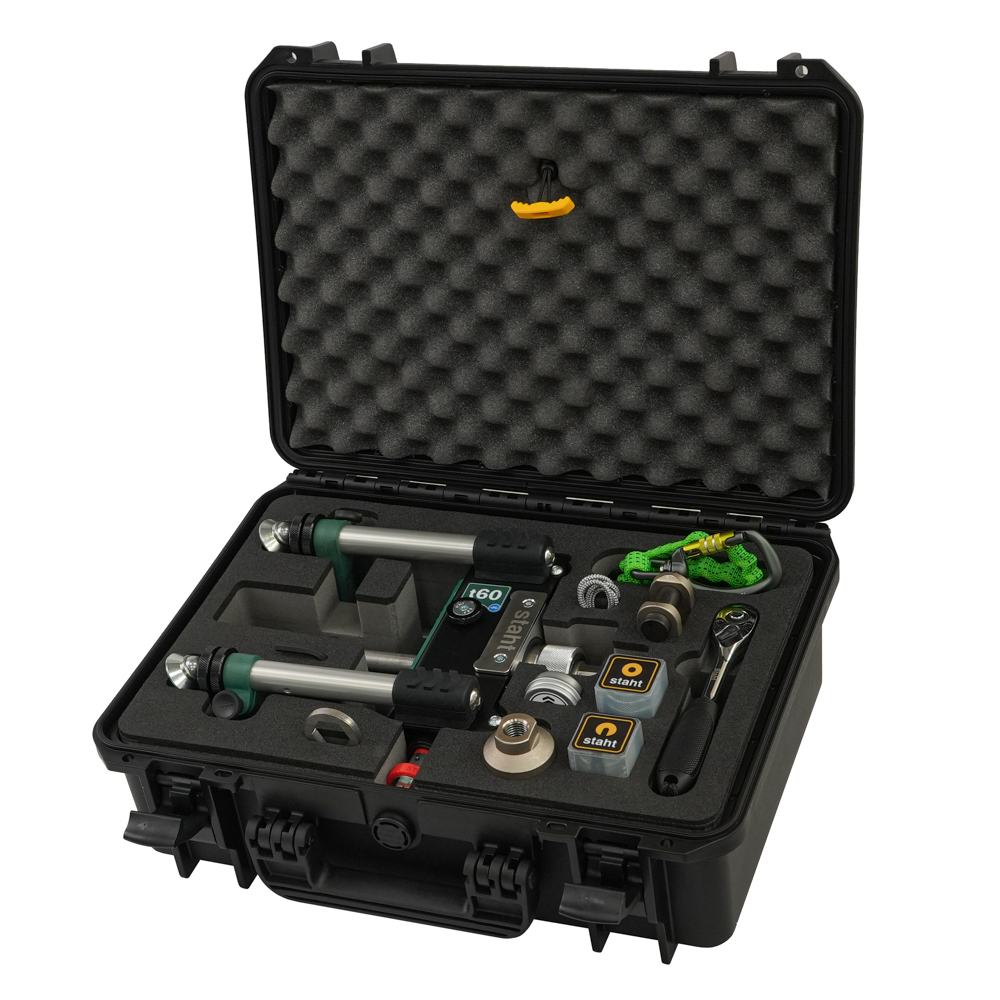

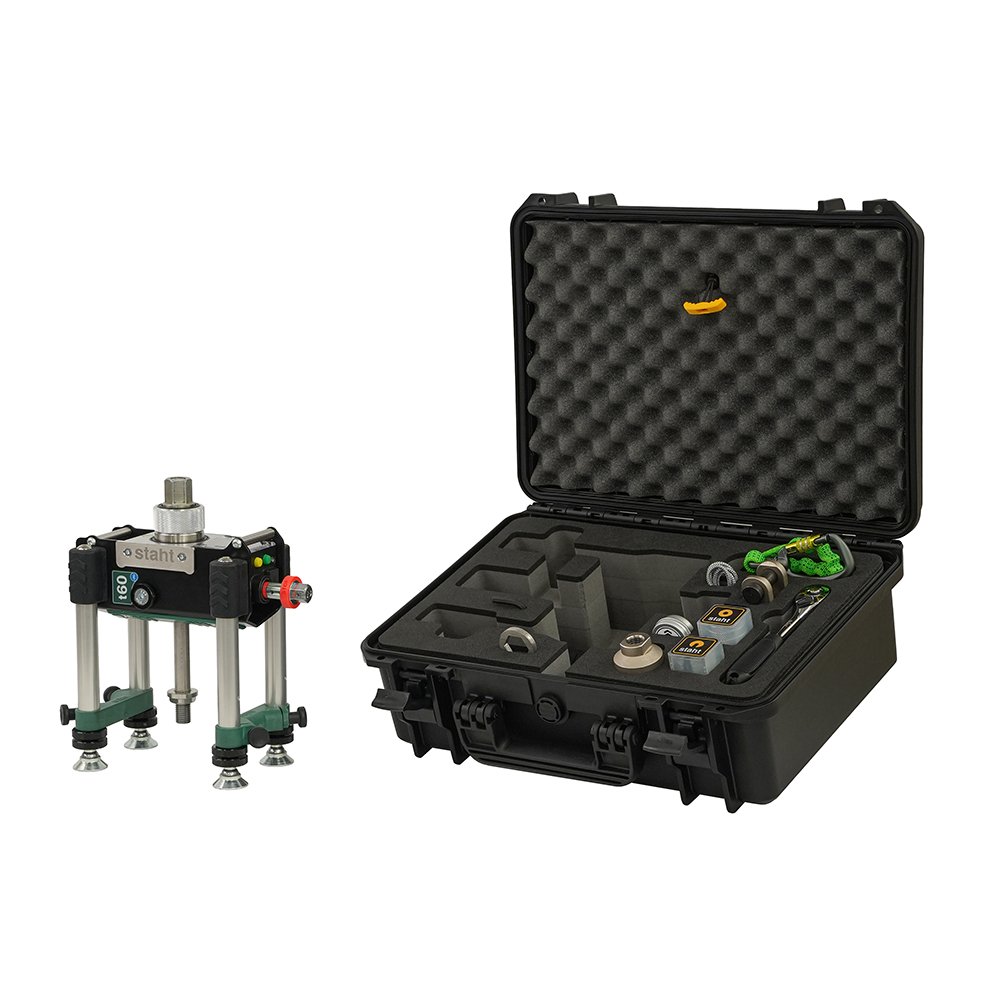

- The Staht t60 Digital Pull Testing Kit is supplied in either a rugged protective case, with a custom foam insert or a durable lightweight padded PVC bag, with carry handle and shoulder strap and internal mesh drawstring bag for accessories.
- Max load
- 60 kN
- Tester
- t60
- Legs
- 4
- Carried in
- Case
- App
- Staht Connect
- Bluetooth
- Yes
- Anchor sizes
- M6 to M20
- Calibration certificate
- 12 months, included
- Brand
- Staht
- Weight
- 10.1 kg
