Shear Testers
On-site shear testing of anchors in concrete and masonry, M6 to M20: to 25 kN with a t25 load cell, or 60 kN with a t60.
Anchor shear testing on site
The Staht shear test rig is a modular accessory that works with a Staht t25 or t60 load cell to check the shear performance of anchors in construction substrates such as concrete and masonry. It takes fixings from M6 to M20. The rig is rated to 60 kN; with a t25 load cell the test load is limited to 25 kN, and with a t60 to 60 kN.
How it's built

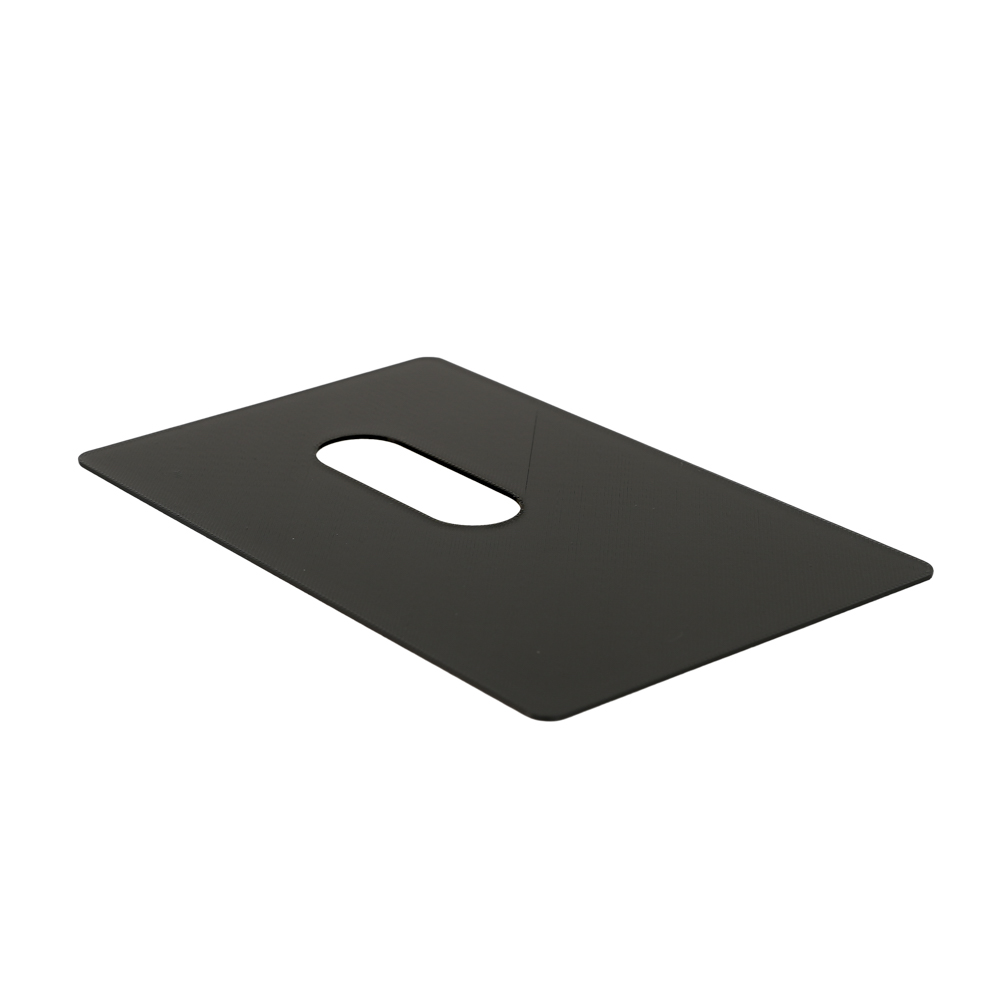

- The sliding head has a PTFE gasket to reduce friction, a keyhole so you can watch the substrate, and a datum boss so you can measure displacement.
- The chassis is fixed to the structure with four anchors (up to M12). Their spacing is based on typical UK and European brick centres.

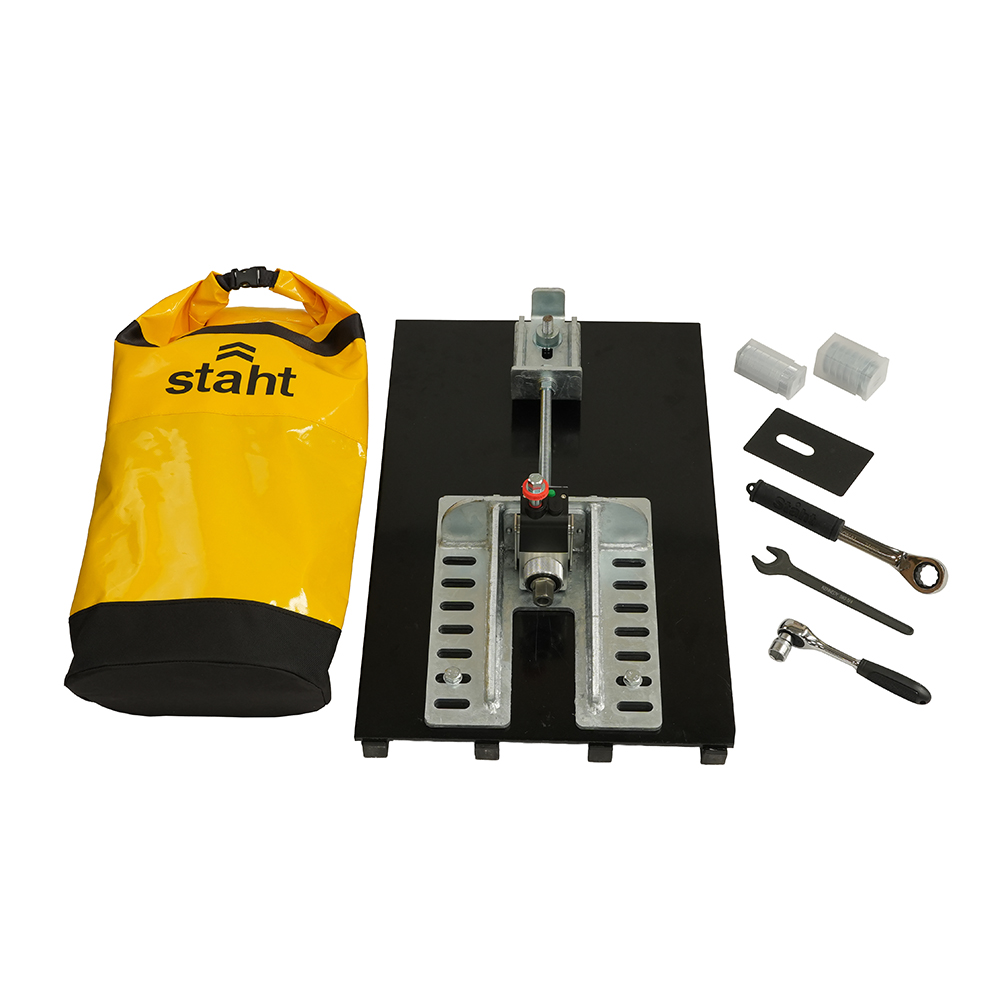

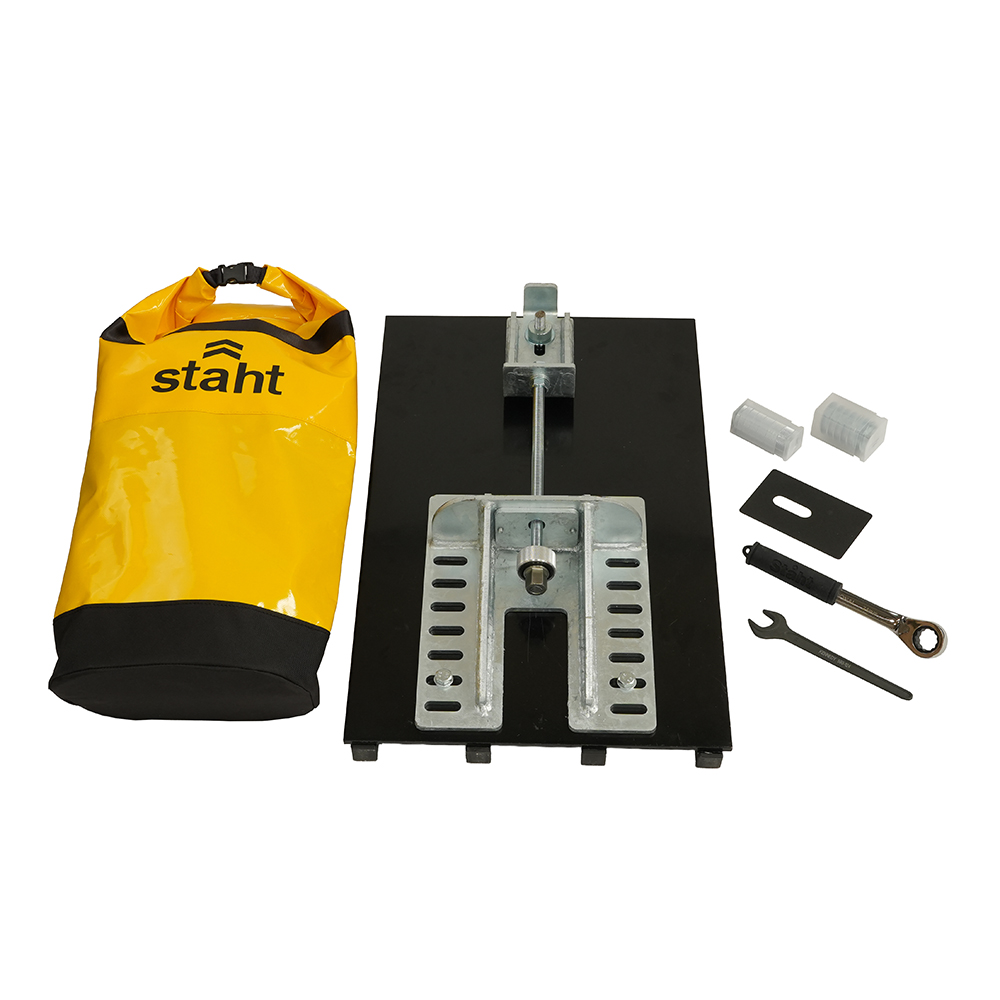

Three kits
- Without a load cell: for people who already have a t25 or t60.
- With a t25 load cell.
- With a t60 load cell.

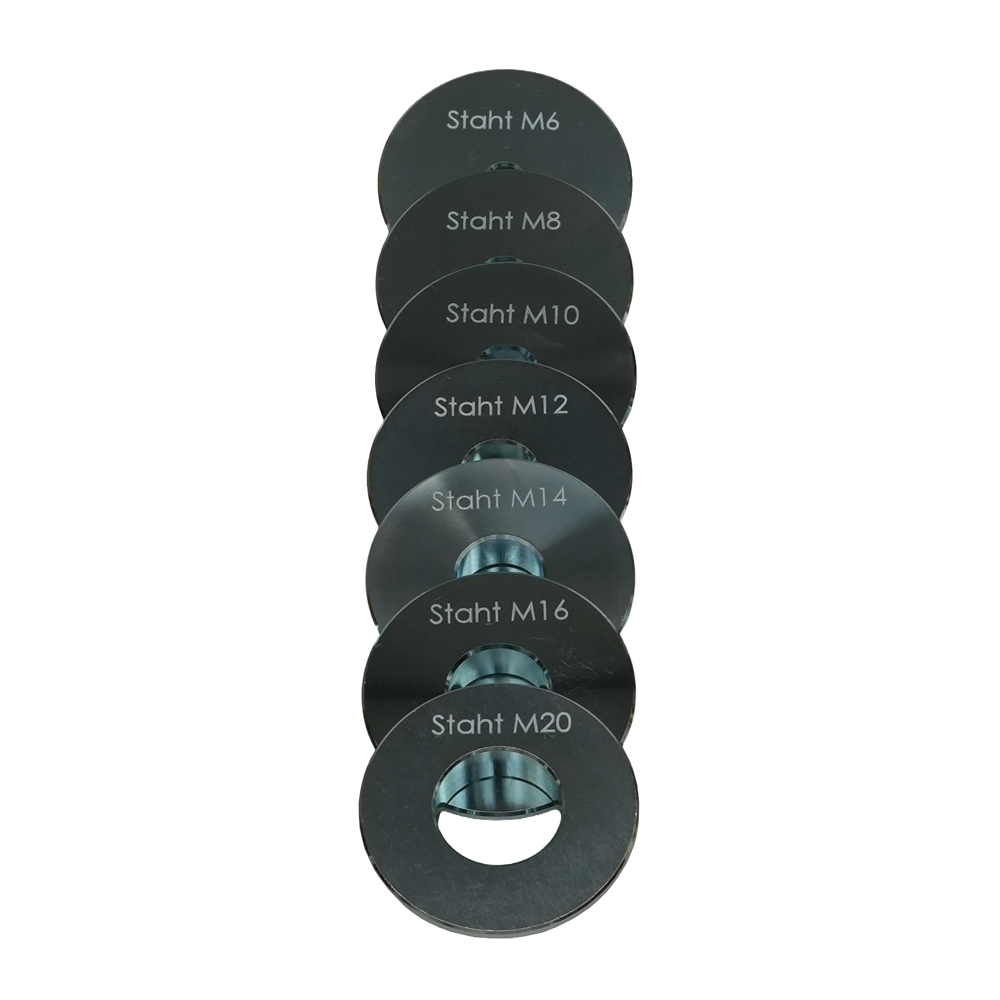

Each comes in a Staht kit bag with bushes and threaded washers from M6 to M20, an M16 sealed thrust nut and a 500 mm drop rod. Spare bushes and gaskets are below.
Standards: the shear test brochure says the rig can be used for site testing as per clause 9.2 of BS 8539.
Results pair with the free Staht Connect app through the load cell.
On site: anchor testing in construction, and trial tests on rope access anchors in shear.
Questions and answers
Checking how anchors in concrete and masonry perform in shear on site, rather than in tension.
A Staht t25 or t60 load cell. Buy the kit with one, or without if you already have one.
Its chassis is fixed back to the structure with four suitable anchors, up to M12, at spacings based on typical UK and European brick centres.
Fixings from M6 to M20, with the bush and threaded washer for each size: up to 25 kN with a t25 load cell and up to 60 kN with a t60.
