Part no. 300-000

Staht LT (Swage Tester) Kit 1

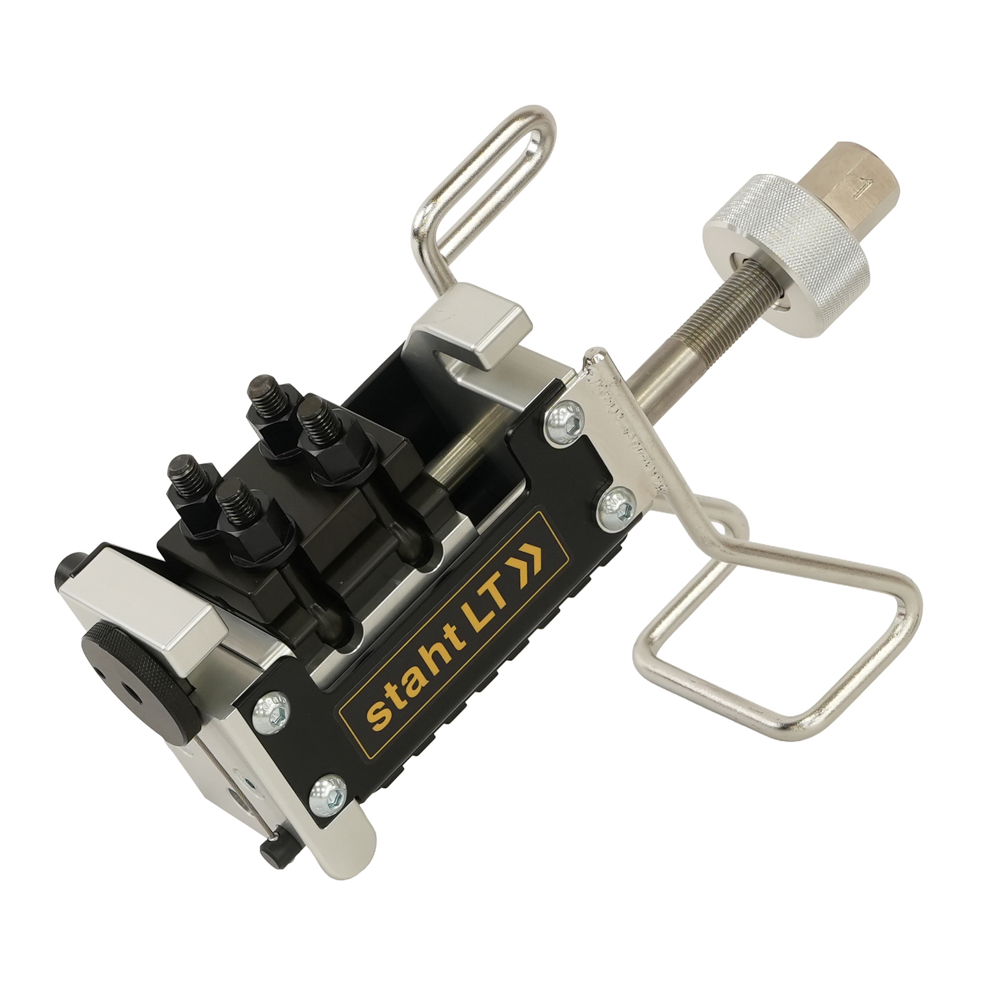

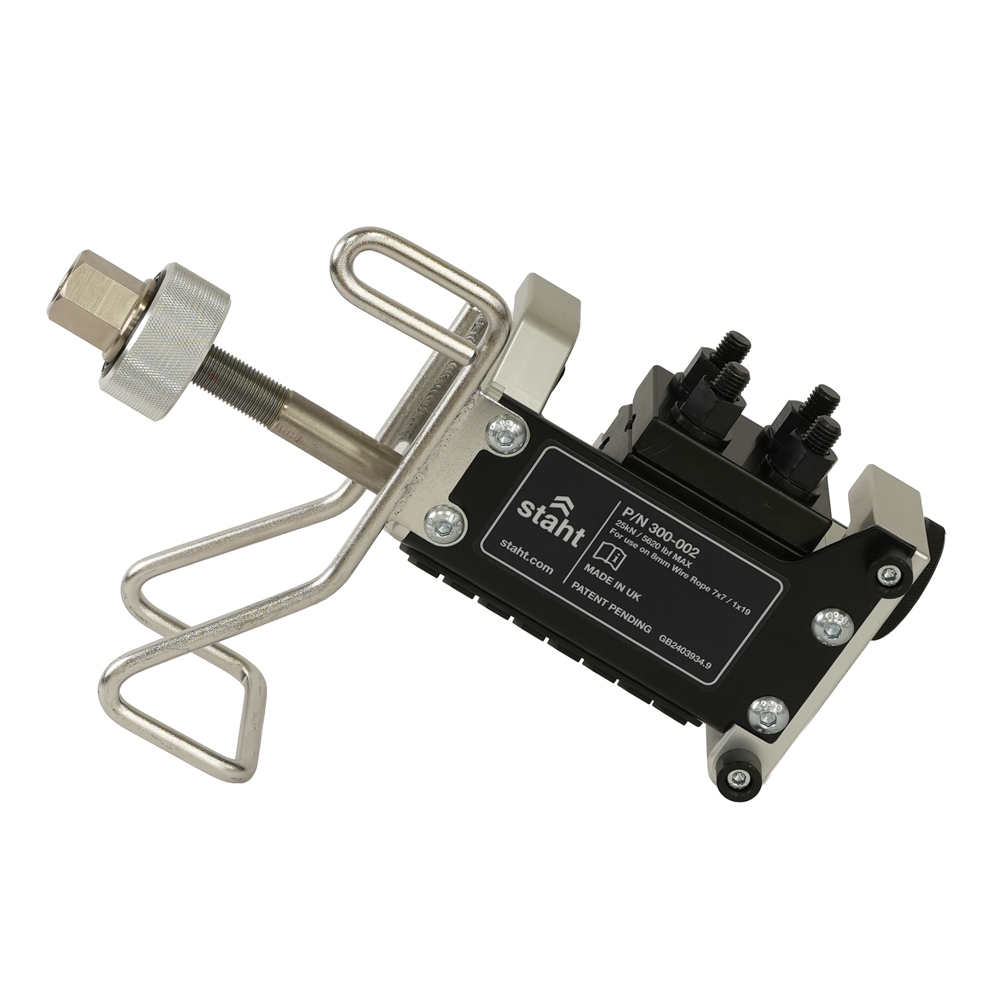

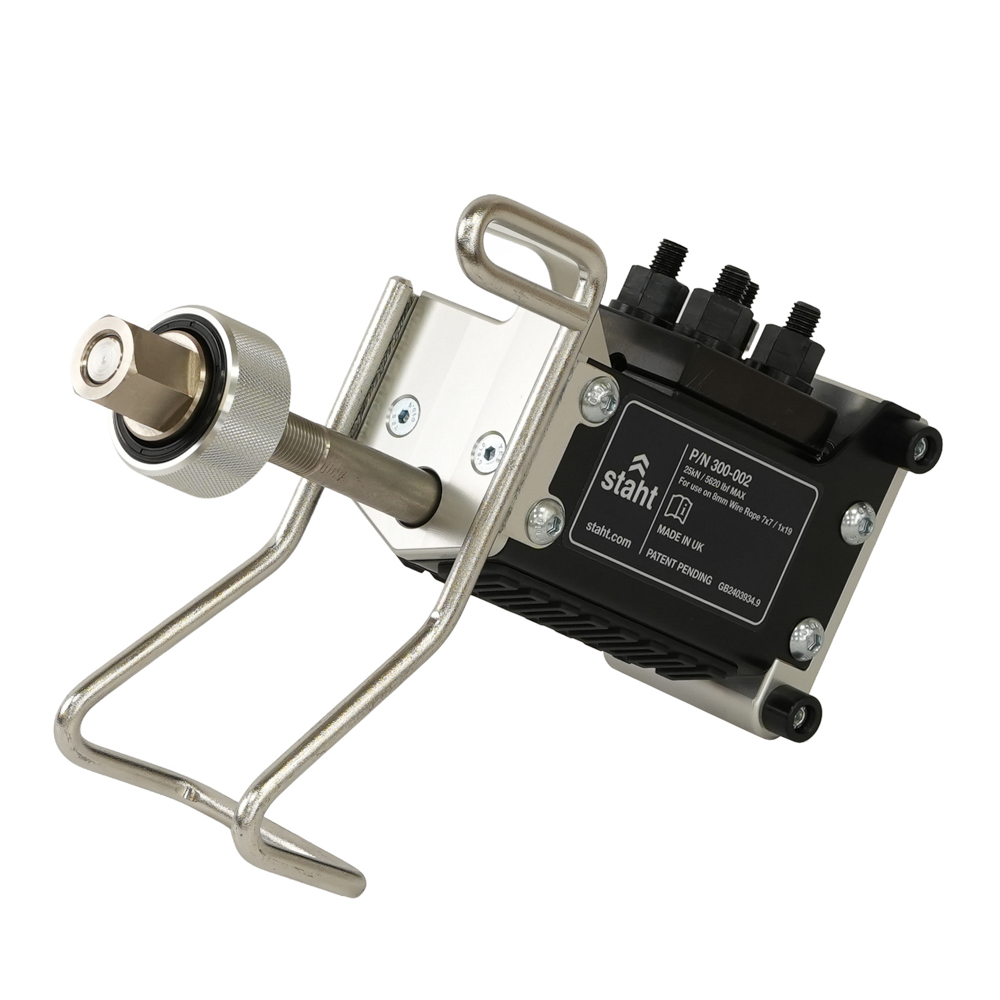

The Staht LT tests 8 mm cable terminations (swages) on safety line systems up to 25 kN. Kit 1 has the line tester frame, M16 sealed thrust nut, anti-rotation spanner, 17 mm socket and ratchet, wrist lanyard and net bag, in a heavy duty case.

£1,465.00ex VAT · £1,758.00 inc VAT
1

The Staht LT is used for testing 8mm (7x7 or 1x19) cable terminations (swage) typically found on safety line systems to a maximum load of 25kN (5,620 lbf).

The manufacturer of the safety line systems will provide test guidance on the force that needs to be applied to the cable termination (swage).

Kit Contents:

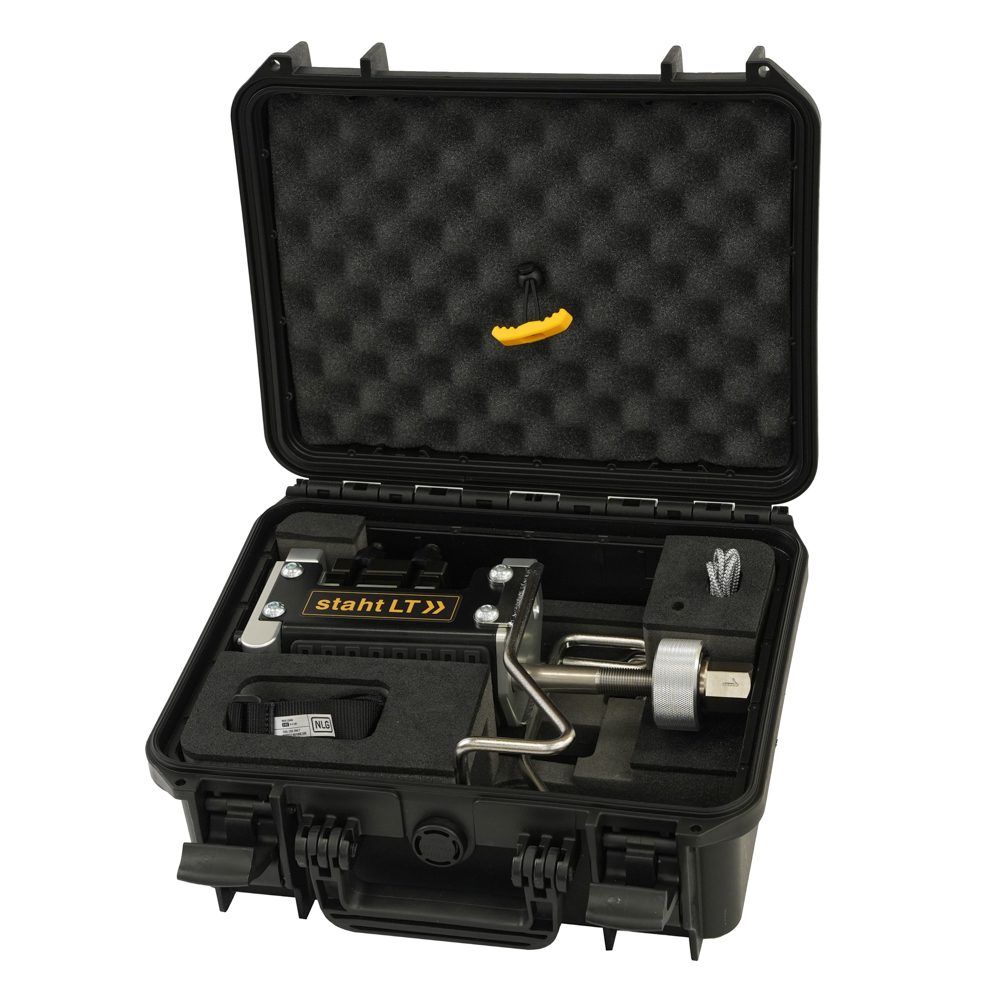

300-000: Kit 1 – line tester frame, M16 sealed thrust nut, anti-rotation spanner, 17 mm socket and 3/8 inch drive ratchet, wrist lanyard, net bag, heavy duty case.

300-006: Kit 2 - Line tester frame, M16 Sealed Thrust Nut, Anti-Rotation Spanner, 17mm Socket & Ratchet 3/8 Drive, Net Bag, Heavy Duty Case, t25 Load Cell ( See TDS 134) , USB-C Charge Cable, 24mm Reversible Ratchet Spanner, Wrist Lanyard, Tool Lanyard.

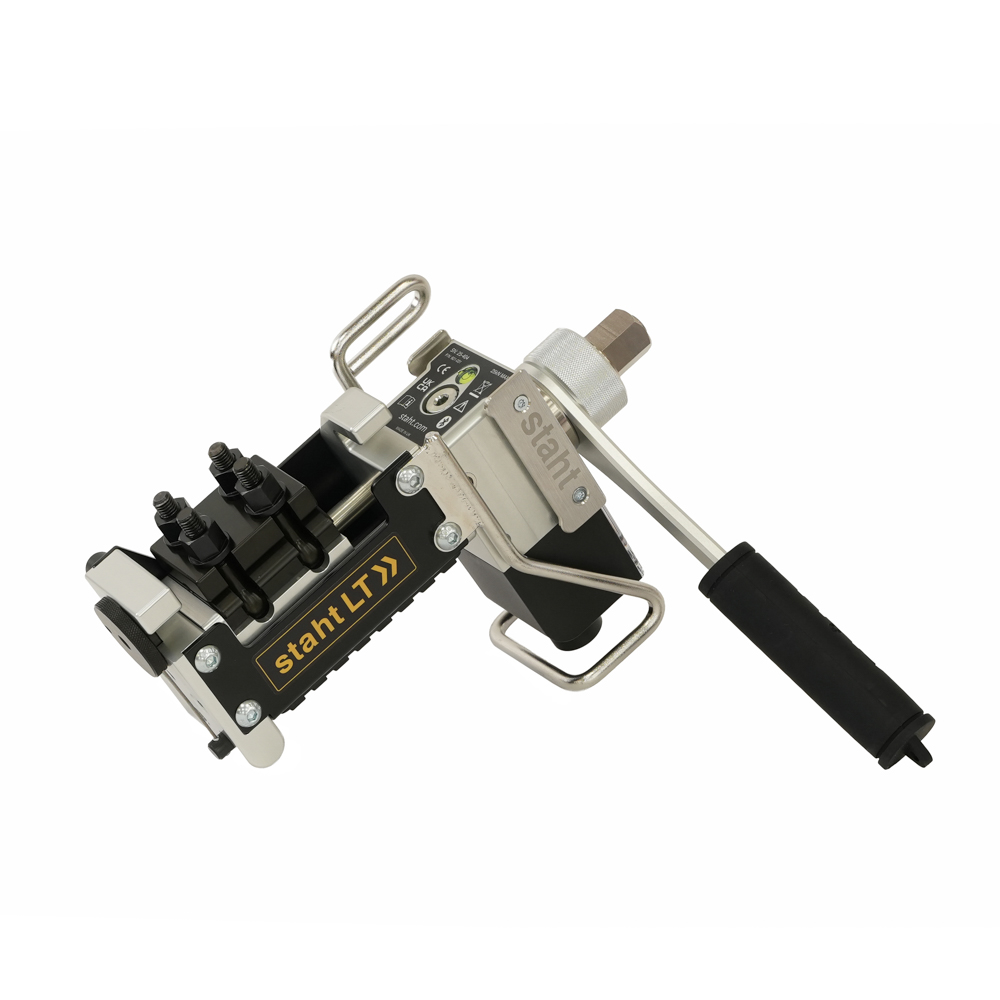

300-007: Kit 3 – Staht LT Kit 1 (300-000) with the 25 kN digital tensile tester kit (600-090), its accessories and heavy duty mini case (see TDS 133).

The LT extension adaptor (part no. 301-005) is sold separately. Some safety line systems need it. For details, see Technical Datasheet No. 155.

Max load
25 kN
Tester
LT swage tester
Carried in
Heavy duty case
Brand
Staht
Weight
7.5 kg

Videos

  • Video: How to use the Staht LT swage tester on 8 mm cable

It loads from YouTube, which may set cookies of its own.
