M16 Sealed Thrust Nut with Drop Rod (Fine thread)
-
Estimated Dispatch:Jun 01 - Jun 05
-
Free Worldwide Shipping *
Staht® Connect App for iOS and Android
Mobile App Included
The Staht Digital Pull Tester app - included as standard, with a free lifetime subscription. No monthly payments, no extra charges.
Capture intricate pull test data in realtime and analyse the results from within the app. Share your tests with colleagues and customers at the press of a button.

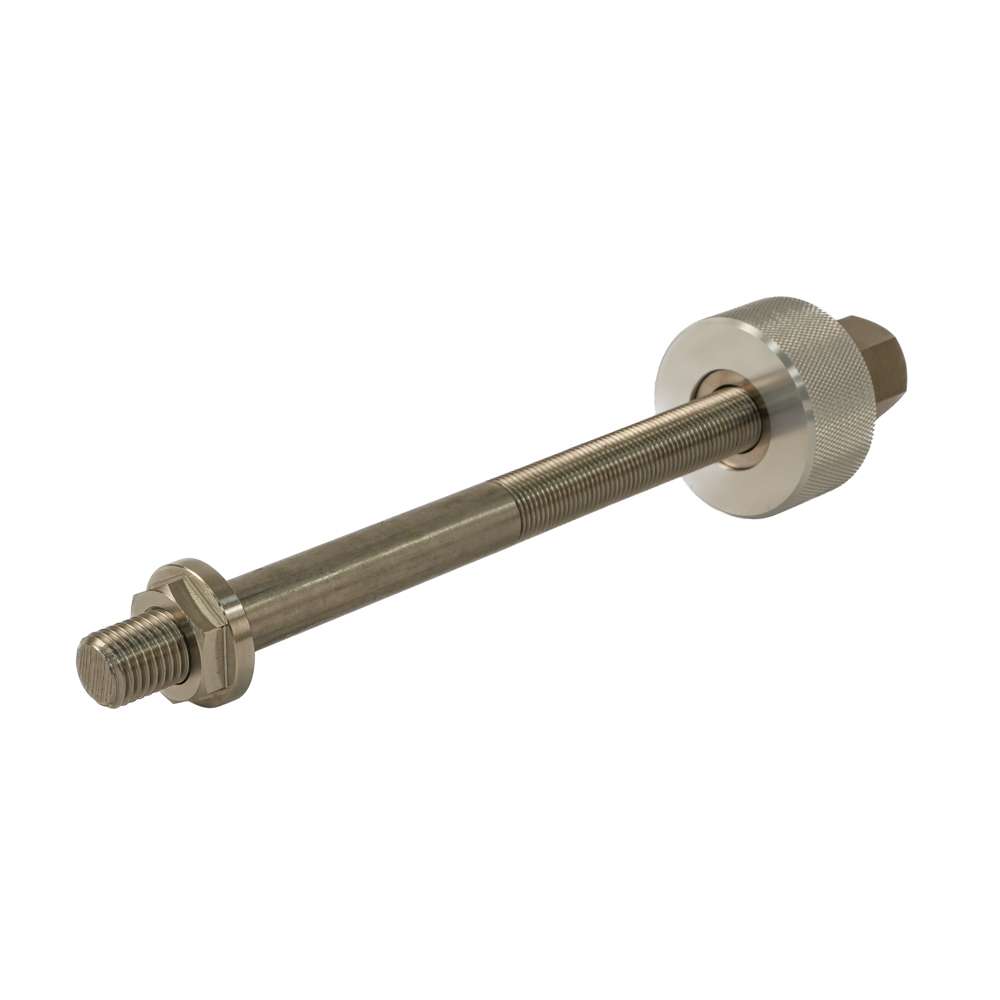

This kit includes M16 Sealed Thrust Nut, M16 Drop Rod (fine thread) and Anti-Rotation Nut.
Can be used on both the t25 and t60 pull testers.
Rated to Max 60kN.
| Item | t25 CASE KIT | t25 BAG KIT | t60 CASE KIT | t60 BAG KIT |
| 60kN Digital Load Cell | ✓ | ✓ | ||
| 25kN Digital Load Cell | ✓ | ✓ | ||
| App (Android and iOS) | ✓ | ✓ | ✓ | ✓ |
| Bridge 60kN | ✓ | ✓ | ||
| Bridge 25kN | ✓ | ✓ | ||
| Drop Rod & Top Nut | ✓ | ✓ | ||
| M16 Sealed Thrust Nut & Drop Rod (fine) | ✓ | ✓ | ||
| Tool Adaptor Jaw | ✓ | ✓ | ✓ | ✓ |
| Clevis | ✓ | ✓ | ✓ | ✓ |
| Threaded Washer Pack, 60kN (M6,M8,M10,M12,M16,M20) | ✓ | ✓ | ||
| Threaded Washer Pack, 25kN (M6,M8,M10,M12,M16) | ✓ | ✓ | ||
| Slotted Washer Pack (M6,M8,M10,M12,M16) | ✓ | ✓ | ✓ | ✓ |
| Tester Lanyard | ✓ | ✓ | ✓ | ✓ |
| 3/8" Socket Ratchet (Reversible) | ✓ | ✓ | ||
| Tool Lanyard | ✓ | ✓ | ✓ | ✓ |
| 17mm Socket | ✓ | ✓ | ||
| 24mm Reversible Ratchet Ring Spanner | ✓ | ✓ | ||
| 24mm Spanner | ✓ | ✓ | ||
| Anti-Rotation Pull Out Nut & Handle | ✓ | ✓ | ✓ | ✓ |
| Charging Cable | ✓ | ✓ | ✓ | ✓ |
| 12 month Calibration Certificate | ✓ | ✓ | ✓ | ✓ |
| User Instruction Manual | ✓ | ✓ | ✓ | ✓ |
| Internal Accessory Bag | ✓ | ✓ |
| t25 Case Kit | t25 Bag Kit | t60 Case Kit | T60 Bag Kit | |
|
Operating Load Range |
0 – 25 kN / 0 - 5620 lbf |
0 – 25 kN / 0 - 5620 lbf |
0 – 60 kN / 0 - 13489 lbf |
0 – 60 kN / 0 - 13489 lbf |
|
Max Torque @ 60 kN/ 13489 lbf |
25 Nm / 18.4 ft-lbs |
25 Nm / 18.4 ft-lbs |
||
|
Operating Temperature Range |
-20 to 60 ⁰C/ -4 to 140°F |
-20 to 60 ⁰C/ -4 to 140°F |
-20 to 60 ⁰C / -4 to 140°F |
-20 to 60 ⁰C / -4 to 140°F |
|
Charging Temperature Range |
0 to 45 ⁰C / 32 to 113°F | 0 to 45 ⁰C / 32 to 113°F |
0 to 45 ⁰C / 32 to 113°F |
0 to 45 ⁰C / 32 to 113°F |
|
Tester Weight |
4.1 kg / 9 lbs | 4.1 kg / 9 lbs |
4.4 kg / 9.7 lbs |
4.4 kg / 9.7 lbs |
|
Kit Weight& Dimensions |
10.1 kg/ 22.2 lbs. 0.465 x 0.350 x 0.175 m / 18.3 x 13.8 x 6.9" |
8 kg / 17.6 lbs. 0.35 x 0.31 x 0.17 m / 13.8 x 12.2 x 6.69" |
||
|
Packaged Weight & Dimensions |
10.8 kg/ 23.8lbs. 0.5 x 0.385 x 0.21m / 19.6 x 15.15 x 8.27" | 10.8 kg/ 23.8lbs. 0.5 x 0.385 x 0.21m / 19.6 x 15.15 x 8.27" |
10.8 kg/ 23.8lbs. 0.5 x 0.385 x 0.21m / 19.6 x 15.15 x 8.27" |
8.7 kg / 19.1 lbs.0.5 x 0.385 x 0.21 m / 19.6 x 15.15 x 8.27" |
|
Tool Lanyard Length & Capacity |
0.9 -1.65 m ext/ 31.5-65" ext. MAX8 kg / 17.6 lbs | 0.9 -1.65 m ext/ 31.5-65" ext. MAX8 kg / 17.6 lbs |
0.9 -1.65 m ext/ 31.5-65"ext.MAX8 kg / 17.6 lbs |
0.9-1.65 m / 31.5-65".8kg / 17.6 lbs |
|
Wrist Lanyard Capacity |
0.9 kg / 1.98 lbs | 0.9 kg / 1.98 lbs |
0.9 kg / 1.98 lbs |
0.9 kg / 1.98 lbs |
|
USB-C Braided Charge Cable |
1 m / 39” 3 Amp | 1 m / 39” 3 Amp |
1 m / 39” 3 Amp |
1 m / 39” 3 Amp |
|
Connectivity |
StahtConnect App via Bluetooth® LE | StahtConnect App via Bluetooth® LE |
StahtConnect App via Bluetooth® LE |
StahtConnect App via Bluetooth® LE |
|
Battery |
Rechargeable Li-Ion Polymer | Rechargeable Li-Ion Polymer |
Rechargeable Li-Ion Polymer |
Rechargeable Li-Ion Polymer |
|
Hydraulic Oil |
ISO VG 32 Premium Mineral Based Oil | ISO VG 32 Premium Mineral Based Oil |
ISO VG 32 Premium Mineral Based Oil |
ISO VG 32 Premium Mineral Based Oil |
|
Test Standards |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014 |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014 |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014 |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014
|
|
Certfication |
CE, UKCA | CE, UKCA |
CE, UKCA |
CE, UKCA |
Please find links to all our documentation below.
Master Documents
| Document | Language | Download Link | Version |
| t25 Brochure | English | Download | v1 |
| t60 Brochure | English | Download | v1 |
| Technical Data Sheet | English | Download | v2 |
| User Instruction Manual | English | Download | v2 |
| User Instruction Manual | Danish | Download | v1 |
| User Instruction Manual | German | Download | v1 |
| User Instruction Manual | Spanish | Download | v1 |
| User Instruction Manual | French | Download | v1 |
| User Instruction Manual | Italian | Download | v1 |
| User Instruction Manual | Dutch | Download | v1 |
| User Instruction Manual | Swedish | Download | v1 |
| User Instruction Manual | Hebrew | Download | v1 |
Individual Technical Data Sheets (By Product)
| Description | SKU | Download Link | Version |
| Bridge 60kN / 13488.5lbf | 601-023 | Download | v1 |
