Bridge, 60kN
Bridge, 60kN
Add to wishlist

Bridge, 60kN

£415.00
  • Estimated Dispatch:Mar 20 - Mar 24

  • Free Worldwide Shipping *

Staht® Connect App for iOS and Android

Mobile App Included

The Staht Digital Pull Tester app - included as standard, with a free lifetime subscription. No monthly payments, no extra charges.

Capture intricate pull test data in realtime and analyse the results from within the app. Share your tests with colleagues and customers at the press of a button.

More Information and Download
Product description

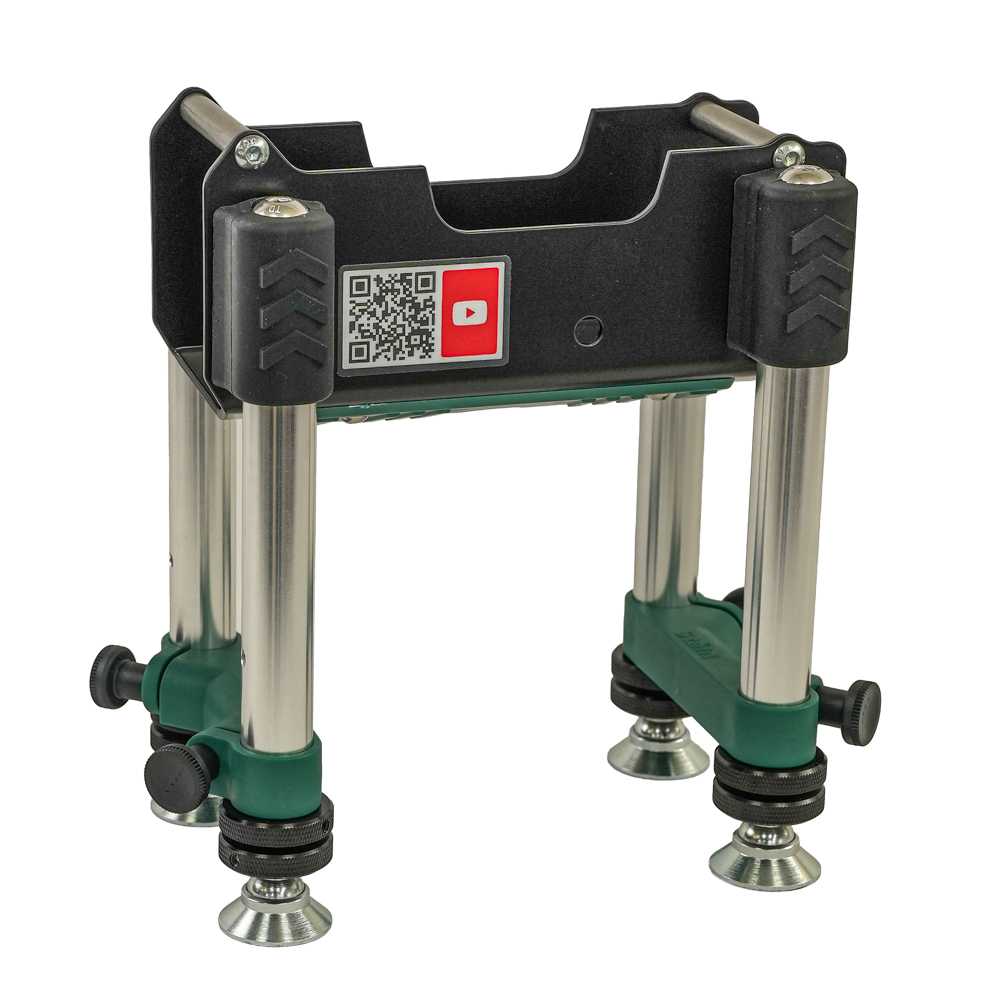

The bridge is designed to work with the Staht Load Cell (part no. 601-015) to proof load test anchors and safety eye bolts up to a maximum load of 60 kN.
The bridge is supplied with 4 x M8 fixings to fix the load cell.
Captive feet and lock nuts provide fine height adjustment and prevent inadvertent loss or overloading of the legs at the maximum bridge height.
Height adjustable leg braces provide additional strength and torsional stiffness.
Ergonomic moulding provides a positive grip in all testing orientations.
Kit: What's Included



 Item Hard Case Kit Bag
60kN Digital Load Cell
App (Android & iOS)
Bridge
Drop Rod & Nut
Tool Adaptor Jaw
Clevis
Tester Lanyard
3/8" Socket Wrench & Lanyard
17mm Socket
Threaded Washer Pack M6, 8, 10, 12, 16 & 20
Slotted Washer Pack M6, 8, 10, 12 & 16
24mm Spanner
12 month Calibration Certificate
User Instruction Manual
Internal Accessory Bag
Technical Specifications



Heavy Duty Case Option
Kit Bag Option

Operating Load Range

0 –60 kN/ 0 -13489 lbf

0 –60 kN/ 0 -13489 lbf

Max Torque @ 60 kN/ 13489 lbf

25 Nm / 18.4 ft-lbs

25 Nm / 18.4 ft-lbs

Operating Temperature Range

-20 to 60 ⁰C / -4 to 140°F

-20 to 60 ⁰C / -4 to 140°F

Charging Temperature Range

0 to 45 ⁰C / 32 to 113°F

0 to 45 ⁰C . 32 to 113°F

Tester Weight

4.4 kg / 9.7 lbs

4.4 kg / 9.7 lbs

Kit Weight& Dimensions

10.1 kg/ 22.2 lbs. 0.465 x 0.350 x 0.175 m / 18.3 x 13.8 x 6.9"

8 kg / 17.6 lbs. 0.35 x 0.31 x 0.17 m / 13.8 x 12.2 x 6.69"

Packaged Weight & Dimensions

10.8 kg/ 23.8lbs. 0.5 x 0.385 x 0.21m / 19.6 x 15.15 x 8.27"

8.7 kg / 19.1 lbs.0.5 x 0.385 x 0.21 m / 19.6 x 15.15 x 8.27"

Tool Lanyard Length & Capacity

0.9 -1.65 m ext/ 31.5-65"ext.MAX8 kg / 17.6 lbs

0.9-1.65 m / 31.5-65".8kg / 17.6 lbs

Wrist Lanyard Capacity

0.9 kg / 1.98 lbs

0.9 kg / 1.98 lbs

USB-C Braided Charge Cable

1 m / 39”. 3 Amp

1 m / 39”. 3 Amp

Connectivity

StahtConnect App via Bluetooth® LE

StahtConnect App via Bluetooth® LE

Battery

Rechargeable Li-Ion Polymer

Rechargeable Li-Ion Polymer

Hydraulic Oil

ISO VG 32 Premium Mineral Based Oil

ISO VG 32 Premium Mineral Based Oil

Test Standards

EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009,

EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014

EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009,

EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014



Certfication

CE, UKCA

CE, UKCA





Documentation

Please find links to all our documentation below.

Master Documents

Document Language Download Link Version
 Technical Data Sheet English Download v1
User Instruction Manual English Download v1
User Instruction Manual
Danish
Download v1
User Instruction Manual
German
Download v1
User Instruction Manual
Spanish
Download v1
User Instruction Manual
French
Download v1
User Instruction Manual
Italian
Download v1
User Instruction Manual Dutch Download v1
User Instruction Manual Swedish Download v1
User Instruction Manual Hebrew Download v1



Individual Technical Data Sheets (By Product)

Description SKU Download Link Version
Bridge 60kN / 13488.5lbf
601-023
Download
v1
