Staht 60kN Digital Pull Tester Load Cell
-
Estimated Dispatch:Mar 20 - Mar 24
-
Free Worldwide Shipping *
Staht® Connect App for iOS and Android
Mobile App Included
The Staht Digital Pull Tester app - included as standard, with a free lifetime subscription. No monthly payments, no extra charges.
Capture intricate pull test data in realtime and analyse the results from within the app. Share your tests with colleagues and customers at the press of a button.

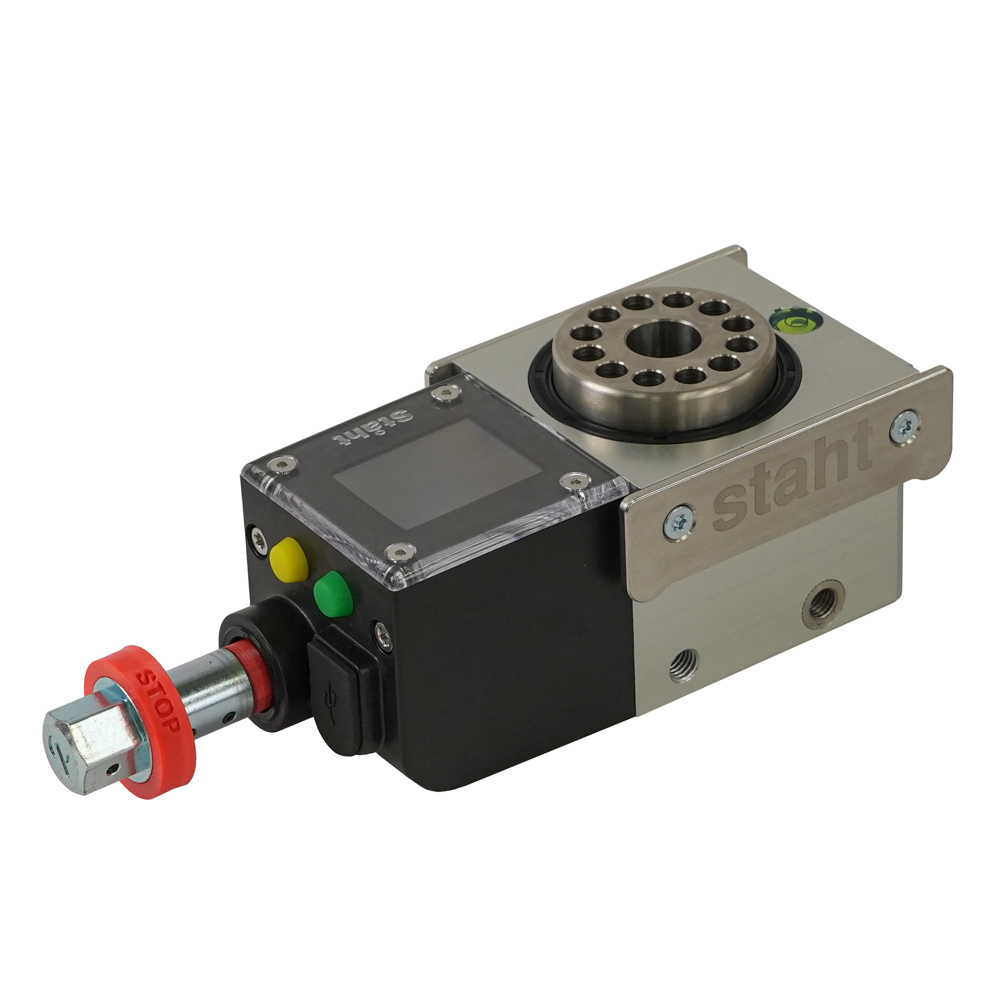

The Load Cell is designed to proof load test anchors and safety eye bolts up to a maximum load of 60 kN.
For use with a Staht Bridge or to fix onto your own bridge design*.
Please note, you will require a USB-C charging cable to charge the unit. This is not supplied with the unit.
*Bridge designs and applications for this product not designed and approved by Staht are done so at the risk of the designer and user.
| Item | Hard Case | Kit Bag |
| 60kN Digital Load Cell | ✓ | ✓ |
| App (Android & iOS) | ✓ | ✓ |
| Bridge | ✓ | ✓ |
| Drop Rod & Nut | ✓ | ✓ |
| Tool Adaptor Jaw | ✓ | ✓ |
| Clevis | ✓ | ✓ |
| Tester Lanyard | ✓ | ✓ |
| 3/8" Socket Wrench & Lanyard | ✓ | ✓ |
| 17mm Socket | ✓ | ✓ |
| Threaded Washer Pack M6, 8, 10, 12, 16 & 20 | ✓ | ✓ |
| Slotted Washer Pack M6, 8, 10, 12 & 16 | ✓ | ✓ |
| 24mm Spanner | ✓ | ✓ |
| 12 month Calibration Certificate | ✓ | ✓ |
| User Instruction Manual | ✓ | ✓ |
| Internal Accessory Bag | ✓ | |
| Heavy Duty Case Option | Kit Bag Option | |
|
Operating Load Range |
0 –60 kN/ 0 -13489 lbf |
0 –60 kN/ 0 -13489 lbf |
|
Max Torque @ 60 kN/ 13489 lbf |
25 Nm / 18.4 ft-lbs |
25 Nm / 18.4 ft-lbs |
|
Operating Temperature Range |
-20 to 60 ⁰C / -4 to 140°F |
-20 to 60 ⁰C / -4 to 140°F |
|
Charging Temperature Range |
0 to 45 ⁰C / 32 to 113°F |
0 to 45 ⁰C . 32 to 113°F |
|
Tester Weight |
4.4 kg / 9.7 lbs |
4.4 kg / 9.7 lbs |
|
Kit Weight& Dimensions |
10.1 kg/ 22.2 lbs. 0.465 x 0.350 x 0.175 m / 18.3 x 13.8 x 6.9" |
8 kg / 17.6 lbs. 0.35 x 0.31 x 0.17 m / 13.8 x 12.2 x 6.69" |
|
Packaged Weight & Dimensions |
10.8 kg/ 23.8lbs. 0.5 x 0.385 x 0.21m / 19.6 x 15.15 x 8.27" |
8.7 kg / 19.1 lbs.0.5 x 0.385 x 0.21 m / 19.6 x 15.15 x 8.27" |
|
Tool Lanyard Length & Capacity |
0.9 -1.65 m ext/ 31.5-65"ext.MAX8 kg / 17.6 lbs |
0.9-1.65 m / 31.5-65".8kg / 17.6 lbs |
|
Wrist Lanyard Capacity |
0.9 kg / 1.98 lbs |
0.9 kg / 1.98 lbs |
|
USB-C Braided Charge Cable |
1 m / 39”. 3 Amp |
1 m / 39”. 3 Amp |
|
Connectivity |
StahtConnect App via Bluetooth® LE |
StahtConnect App via Bluetooth® LE |
|
Battery |
Rechargeable Li-Ion Polymer |
Rechargeable Li-Ion Polymer |
|
Hydraulic Oil |
ISO VG 32 Premium Mineral Based Oil |
ISO VG 32 Premium Mineral Based Oil |
|
Test Standards |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014 |
EN 61000-6-3:2007+A1:2011,EN 61000-4-2:2009, EN 61000-4-3+A1:2010 +A2:2010, EN 61000-4-6:2014
|
|
Certfication |
CE, UKCA |
CE, UKCA |
Please find links to all our documentation below.
Master Documents
| Document | Language | Download Link | Version |
| Technical Data Sheet | English | Download | v1 |
| User Instruction Manual | English | Download | v1 |
| User Instruction Manual | Danish | Download | v1 |
| User Instruction Manual | German | Download | v1 |
| User Instruction Manual | Spanish | Download | v1 |
| User Instruction Manual | French | Download | v1 |
| User Instruction Manual | Italian | Download | v1 |
| User Instruction Manual | Dutch | Download | v1 |
| User Instruction Manual | Swedish | Download | v1 |
| User Instruction Manual | Hebrew | Download | v1 |
Individual Technical Data Sheets (By Product)
| Description | SKU | Download Link | Version |
| Bridge 60kN / 13488.5lbf | 601-023 | Download | v1 |
